\(QS45_{1}^{(1)}\)
Description

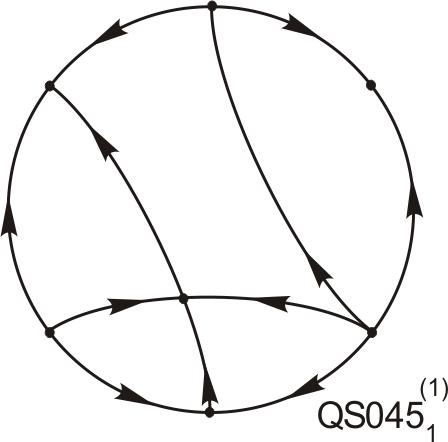

Phase Portrait
Topological Invariants
| TCSP | Fin Sep | Inf Sep |
|---|---|---|
| \(45\) | \(4\) | \(211110\) |
Example
The quadratic differential system
\[\begin{cases} \dot{x} = (1-e) \, x^{2}+2 \, h \, x \, y+(n-1-2 \, h) \, y^{2} \\ \dot{y} = y+c \, (1-e) \, x^{2}+(2+2 \, h-n) \, (1-e) \, x \, y-2 \, c \, x \, y+(c-2-2 \, h+2 \, n) \, y^{2} \end{cases}\]
with parameters: \(h = 0, \quad c = \frac{1}{2}, \quad n = 10, \quad e = 0.1\)
has the following phase portrait done with P4. If you want, you may download the P4 file here. Since the image is not clear enough, we have added a ZOOM of it.
The phase portrait appears in the following papers
- With name \(28\) in {A. Belfar and R. Benterki}, Qualitative dynamics of five quadratic polynomial differential systems exhibiting five classical cubic algebraic curves, Rend. Circ. Mat. Palermo (2) { bf 72} (2023), no.~1, 393--420; MR4543844Note (for name \(28\)): i guess that the right separatrix of the sn must be in red instead of the orbit
- With name \(A18\) in {C. A. Buzzi and D. J. Tonon}, Quadratic planar systems with two parallel invariant straight lines, Qual. Theory Dyn. Syst. { bf 7} (2009), no.~2, 295--316; MR2486677
- With name \(Fig 7 13\) in {L. Cairó and J. Llibre}, Phase portraits of Families VII and VIII of the Quadratic Systems. Axioms. No. 12(756), (2023), 18pp.
- With name \(Fig 1 A1-2S2\) in {J. C. Artés, L. Cairó and J. Llibre}, New Exploration of Phase portraits Classification of QuadraticPolynomial Differential Systems based on Invariant Theory. Applied Math. No. 1(0), (2025), 24pp.
- With name \(PP14\) in {J. Llibre and H. X. Ou}, Quadratic systems with two invariant real straight lines and an invariant parabola, Electron. J. Qual. Theory Differ. Equ. { bf 2025}, Paper No. 66, 54 pp.; MR5018064
- With name \(Ric. 18\) in {J. C. Artés, J. Llibre, D. Schlomiuk and N. Vulpe}, Global analysis of Riccati quadratic differential systems, Internat. J. Bifur. Chaos Appl. Sci. Engrg. { bf 34} (2024), no.~1, Paper No. 2450004, 46 pp.; MR4701478
- With name \(U^1_{A19}\) in {J. C. Artés, J. Llibre and A. C. Rezende}, Structurally unstable quadratic vector fields of codimension one, Birkhäuser/Springer, Cham, 2018, vi+267 pp.
- With names \(h01\) and \(E48\) in {B. Coll, A. Gasull and J. Llibre}, Quadratic systems with a unique finite rest point, emph{Publ. Mat.}, textbf{32} (1988), 199--259.
- With name \(Fig2 1\) in {P. de Jager}, Phase portraits for quadratic systems with a higher order singularity with two zero eigenvalues, emph{J. Differential Equations}, textbf{87} (1990), 169--204.
- With names \(Fig 1.3 o\), \(Fig 1.7 t\), \(Fig 1.7 ff\), \(Fig 1.21 g\) and \(Fig 1.31 k\) in {J. W. Reyn and R. E. Kooij}, Phase portraits of non-degenerate quadratic systems with finite multiplicity two, Differential Equations Dynam. Systems { bf 5} (1997), no.~3-4, 355--414; MR1660222
Missed in:
- {J. Llibre and X. Zhang}, Topological phase portraits of planar semi-linear quadratic vector fields, Houston J. Math. { bf 27} (2001), no.~2, 247--296; MR1874098
Bifurcations in codimension 0
- Bifurcation interface between the codimension 0 portrait \(QS13_{1}^{(0)}\) and \(QS25_{1}^{(0)}\).
